ProgressIndicator

Use aidsgn-progress-indicator to summarize progress through a wizard or another known sequence. It is intentionally non-interactive; pair it with normal Back and Continue buttons. In narrow containers it becomes a vertical list whose connectors continue cleanly between markers even when labels wrap.

  1. Completed: Account
  2. Current: Profile
  3. Preferences
  4. Confirm
<aidsgn-progress-indicator class="aidsgn-progress-indicator" current-step="2" label="Account setup progress">
<ol class="aidsgn-progress-indicator__list" aria-label="Account setup progress">
  <li class="aidsgn-progress-indicator__step aidsgn-is-complete">
    <span class="aidsgn-progress-indicator__marker" aria-hidden="true">✓</span>
    <span class="aidsgn-progress-indicator__state">Completed: </span>
    <span class="aidsgn-progress-indicator__content">Account</span>
  </li>
  <li class="aidsgn-progress-indicator__step aidsgn-is-current" aria-current="step">
    <span class="aidsgn-progress-indicator__marker" aria-hidden="true">2</span>
    <span class="aidsgn-progress-indicator__state">Current: </span>
    <span class="aidsgn-progress-indicator__content">Profile</span>
  </li>
  <li class="aidsgn-progress-indicator__step aidsgn-is-upcoming">
    <span class="aidsgn-progress-indicator__marker" aria-hidden="true">3</span>
    <span class="aidsgn-progress-indicator__state">&#32;</span>
    <span class="aidsgn-progress-indicator__content">Preferences</span>
  </li>
  <li class="aidsgn-progress-indicator__step aidsgn-is-upcoming">
    <span class="aidsgn-progress-indicator__marker" aria-hidden="true">4</span>
    <span class="aidsgn-progress-indicator__state">&#32;</span>
    <span class="aidsgn-progress-indicator__content">Confirm</span>
  </li>
</ol>
</aidsgn-progress-indicator>

Set current-step with a one-based step number. Completed and current states include text for assistive technology, and the layout becomes vertical when its own container is narrow.

Usage guidelines

Section titled “Usage guidelines”

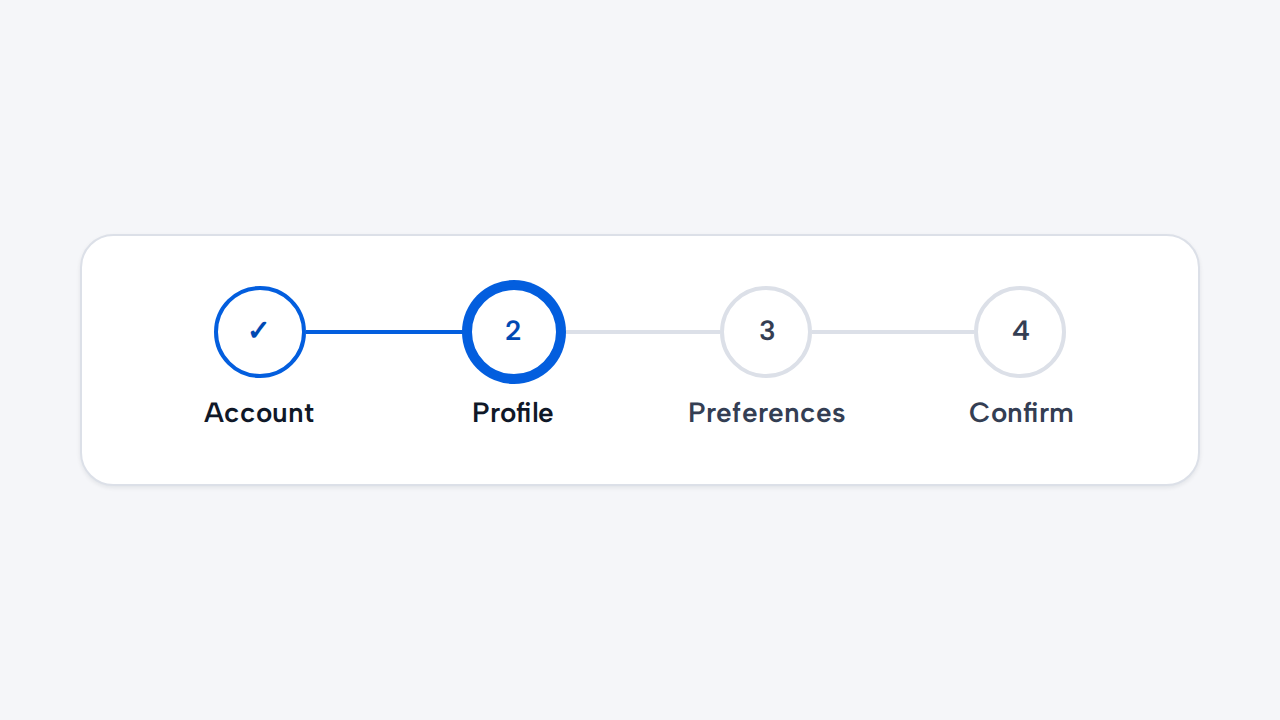

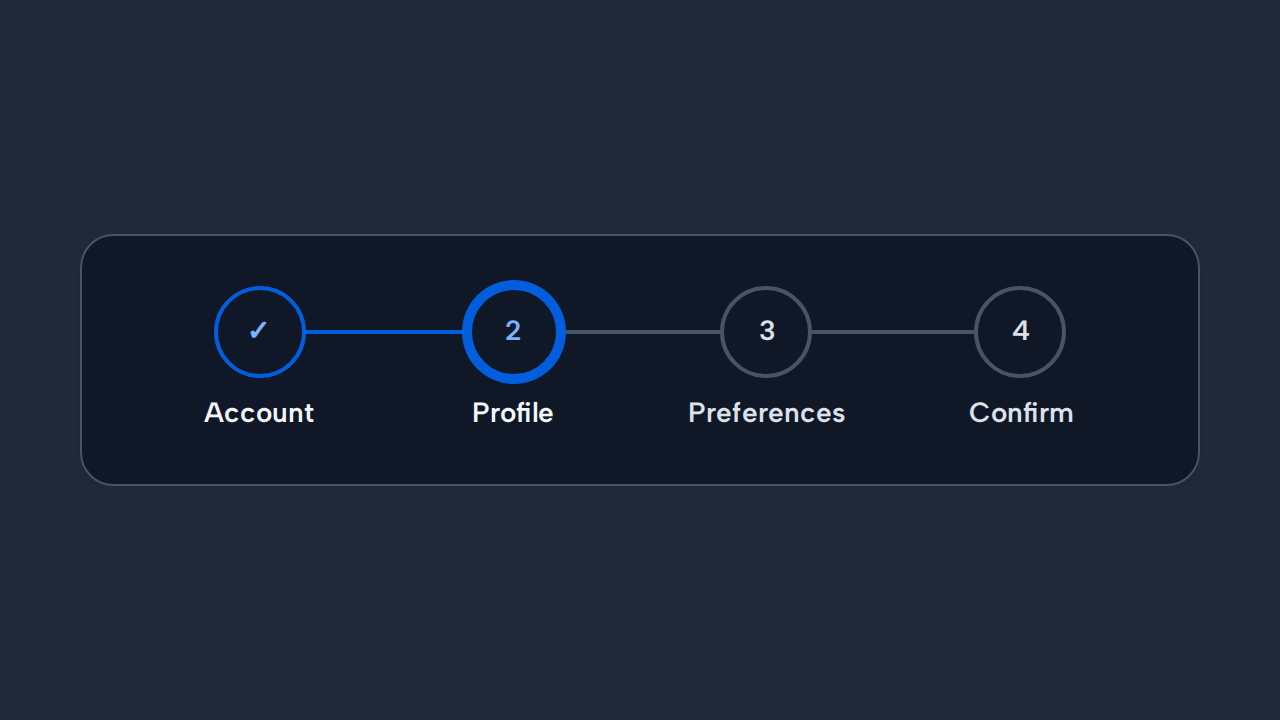

A Progress Indicator shows Account, Profile, Preferences, and Confirm with Profile as the current step.A Progress Indicator shows Account, Profile, Preferences, and Confirm with Profile as the current step.
Do

Represent a known sequence

Use ProgressIndicator when a flow has defined steps and one clear current position.

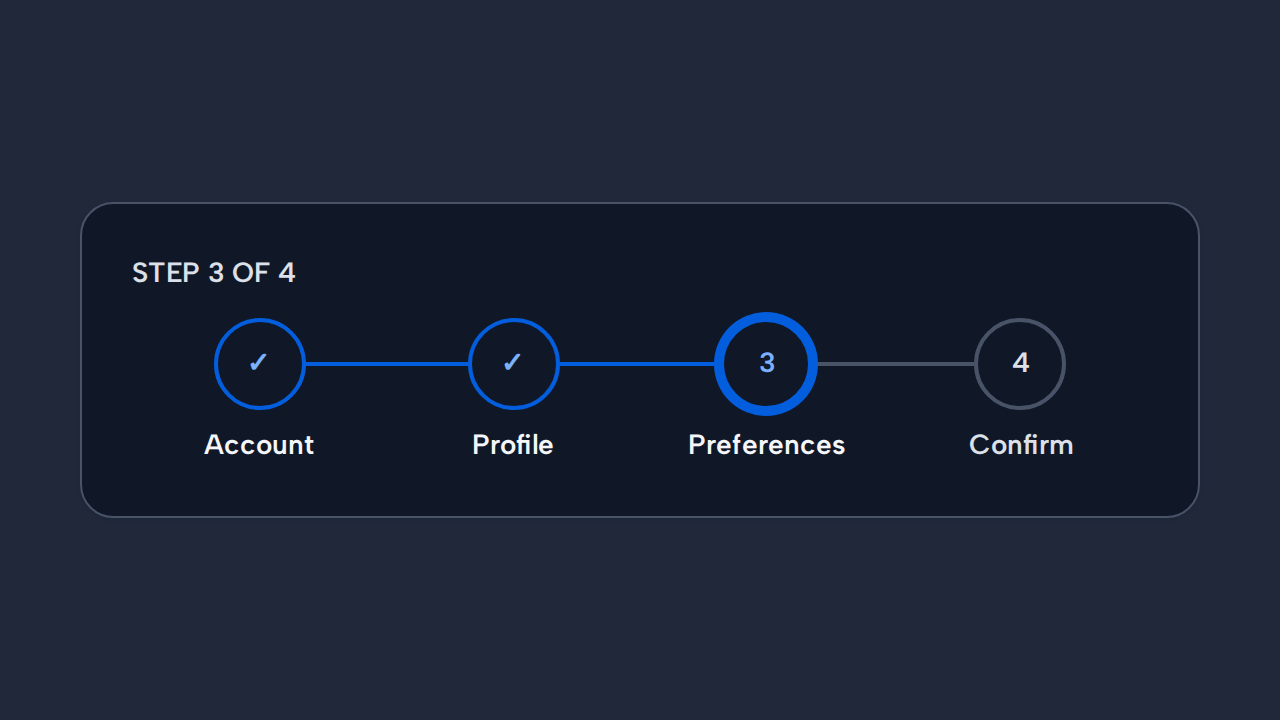

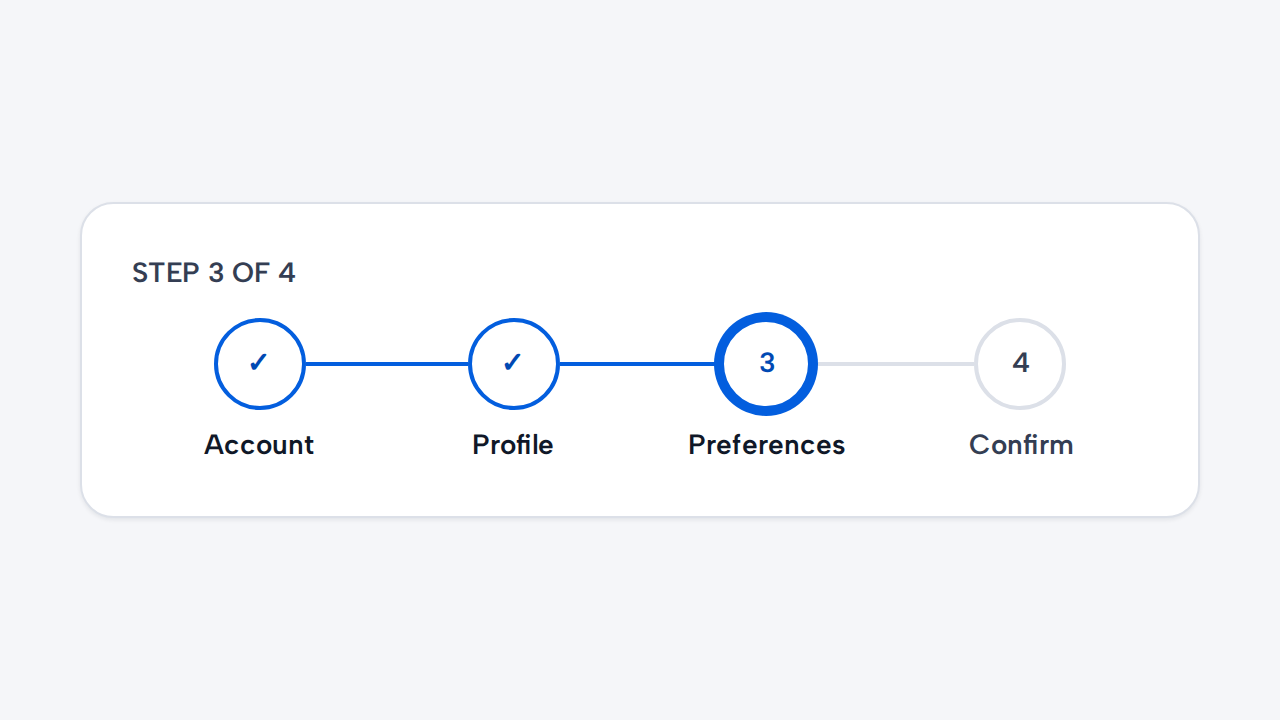

The same four concise setup steps remain ordered from Account through Confirm.The same four concise setup steps remain ordered from Account through Confirm.
Do

Keep the sequence stable

Write short step labels and preserve their order throughout the flow.

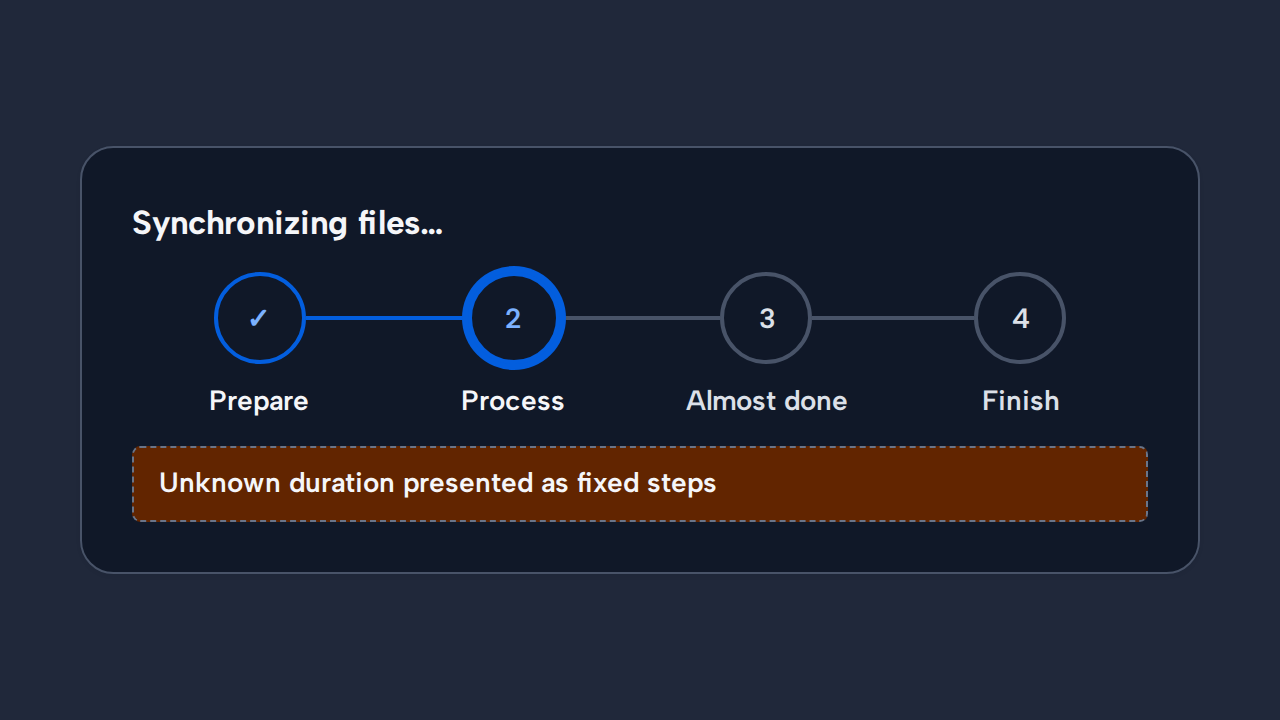

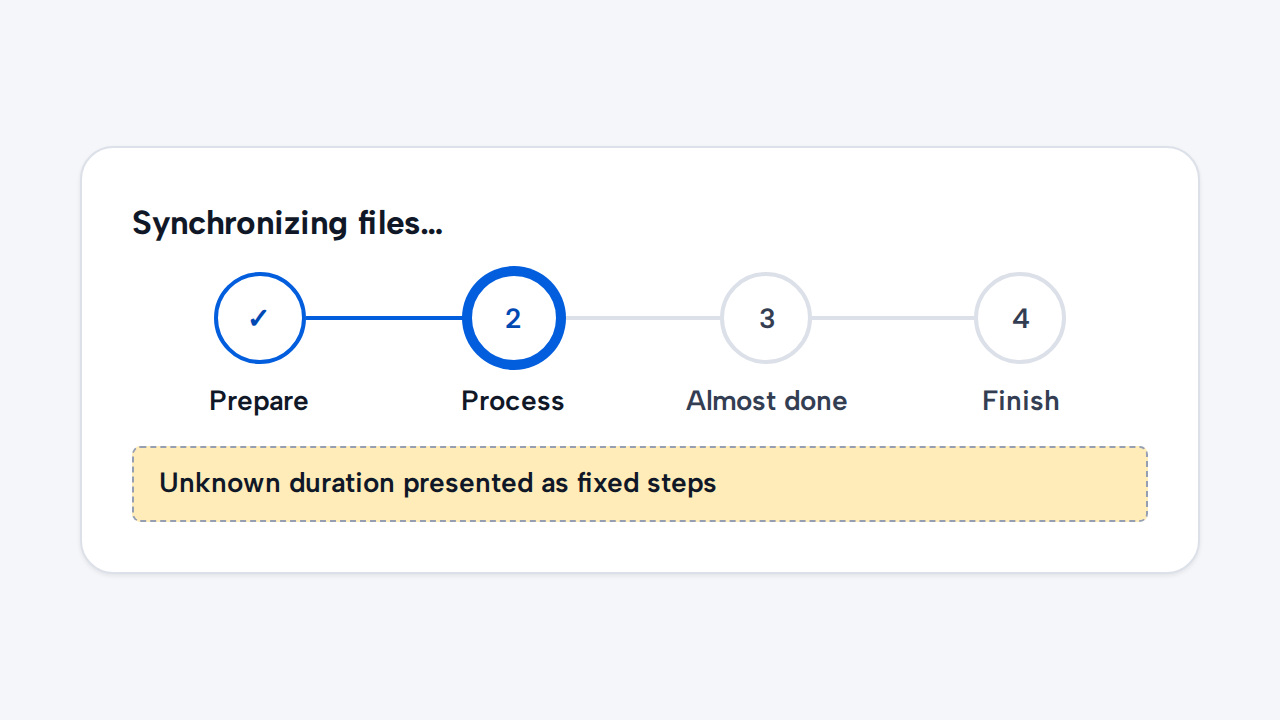

A Progress Indicator incorrectly labels an unknown synchronization process as Prepare, Process, Almost done, and Finish.A Progress Indicator incorrectly labels an unknown synchronization process as Prepare, Process, Almost done, and Finish.
Don’t

Avoid unknown-duration operations

Use a loading treatment when there are no defined steps or meaningful completion positions.

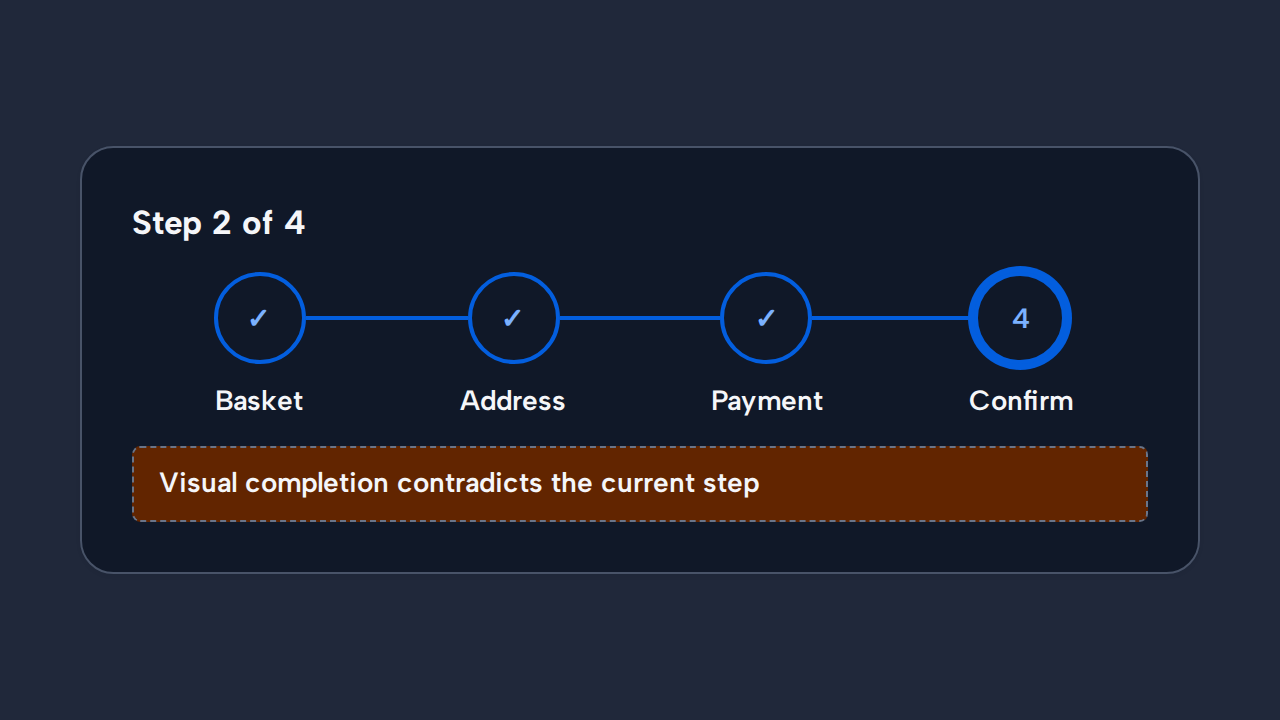

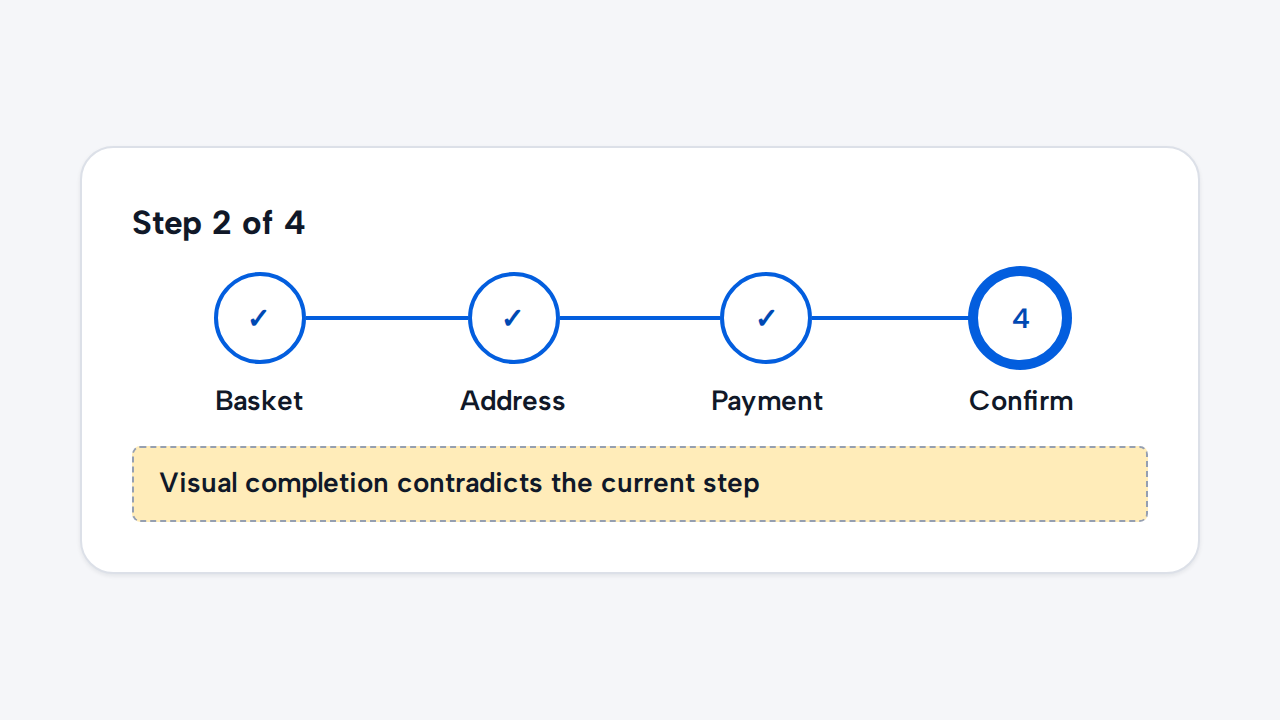

A Progress Indicator marks all four steps complete while the visible text still says Step 2 of 4.A Progress Indicator marks all four steps complete while the visible text still says Step 2 of 4.
Don’t

Never misrepresent progress

Keep future steps incomplete and communicate state through text and semantics as well as the visual marker.
